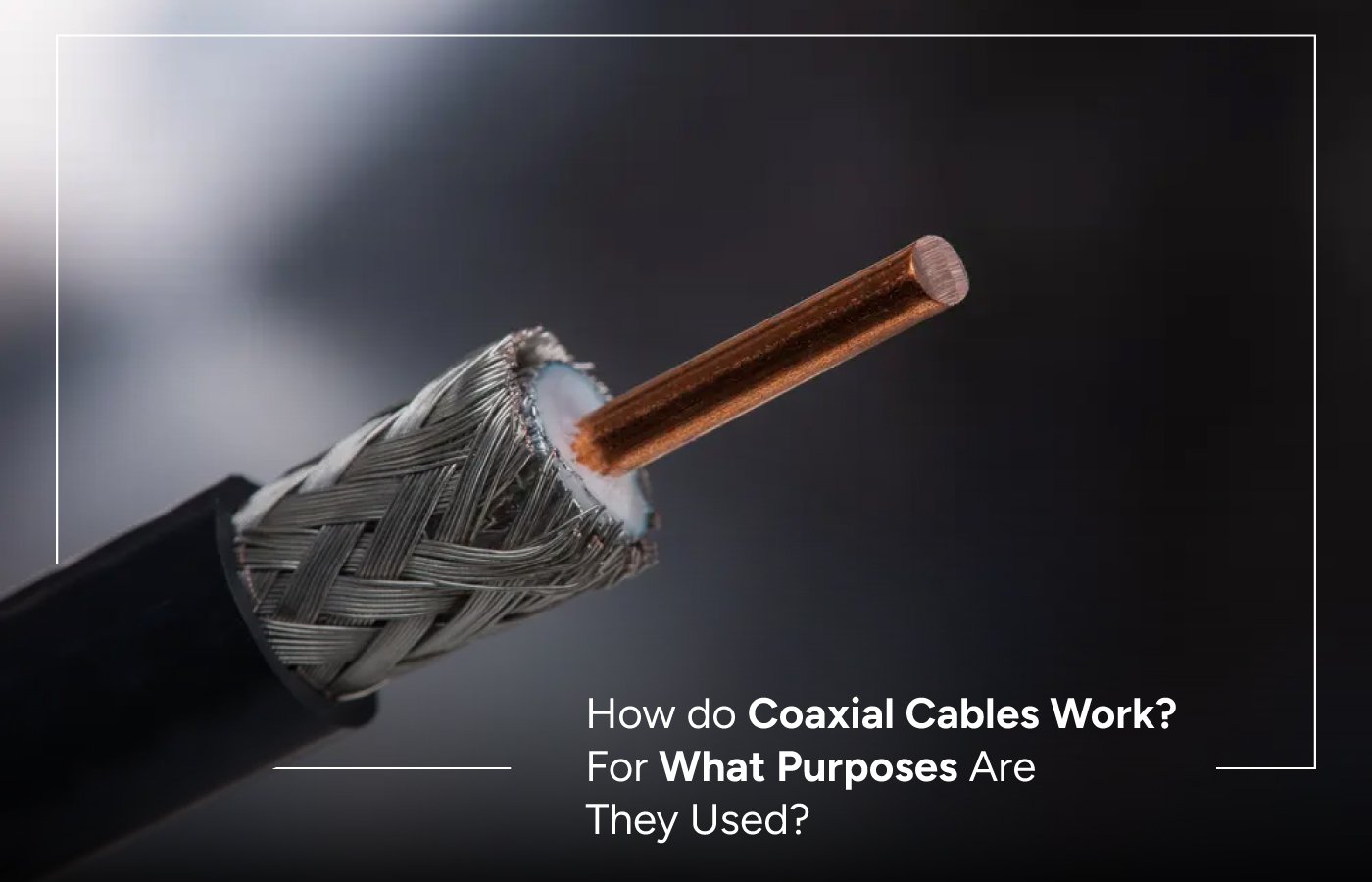

How do Coaxial Cables Work? For What Purposes Are They Used?

Coaxial cable is a type of cable that is widely used to transmit digital communications, including television broadcasts and internet data. A plastic dielectric serves as insulation between two concentric rings of copper conductors.

The inner conductor is the single copper wire that carries the signal. A metal grounding barrier and an insulating layer surround it. The outer conductor called the braid, provides further interference shielding and is made of a copper wire mesh.

There are several varieties, each intended for a particular use. The most widely used type is RG-6 wire, which connects TVs to cable or satellite services. Other types are RG-11 cables, used for long-distance data and video transmission, and RG-59 cables, frequently used for security cameras.

The F, BNC, and RCA connectors are only a few examples of the various connections. Read about connectors and more in our upcoming blog.

A coaxial cable is a transmission line that sends high-frequency electrical signals across long distances. It consists of two concentric conductors isolated from one another by an insulating material and covered in a protective sheath.

Concentric copper conductors surrounded by a dielectric material, such as foam or polyethylene, make up a coaxial cable. The outside conductor, a mesh of braided copper wires or metal foil, acts as a barrier against interference from the outside environment.

Together, the two conductors and the dielectric material create a stable transmission line with a distinct impedance that ensures the stability of the signal over long distances.

Coaxial cables are the best option for sending data, audio, and video.

Coaxial cable outperforms alternative high-bandwidth connections, such as fibre optic cable, in many areas, including price, immunity to electromagnetic interference, and little signal loss over extended distances.

There are several types, each designed for a particular purpose. Below is an explanation of some of the most widely used types:

RG-6: RG-6 coaxial cable is the most often used type for transmitting data and video in cable and satellite TV systems. It can transmit higher bandwidth signals farther than RG-59 because it has a thicker conductor and insulation.

RG-59: RG-59 coaxial wire is used in security systems, CCTV cameras, and specific TV installations. Although it is less expensive than RG-6, its thinner conductor and insulation make it more vulnerable to signal loss over longer distances.

RG-11: This type of coaxial cable is used for long-distance data and video transmission. Its more robust insulation and conductor allow it to carry signals with a broader bandwidth over longer distances than RG-6.

Tri-Shield: Tri-Shield coaxial cable provides a shielding layer to avoid interference, much like RG-6. It is used in areas with electromagnetic interference.

Quad-Shield: For even more crucial interference protection, the Quad-Shield coaxial cable has two more shielding layers over the Tri-Shield. It is commonly used in commercial installations and areas with much interference.

Miniature Coaxial Cable: These smaller diameter coaxial cables are widely used in limited spaces, particularly in consumer electronics such as tablets and smartphones.

Digital Coaxial Cable: A “digital coaxial cable” is a coaxial cable used to transfer digital audio signals between devices. Its wider bandwidth than conventional coaxial cables allows it to carry high-quality audio signals.

Understanding the different types of coaxial cables and their uses is essential when selecting the right one for a given application. Additionally, bandwidth, distance, and interference must be considered when choosing the ideal cable for a given installation.

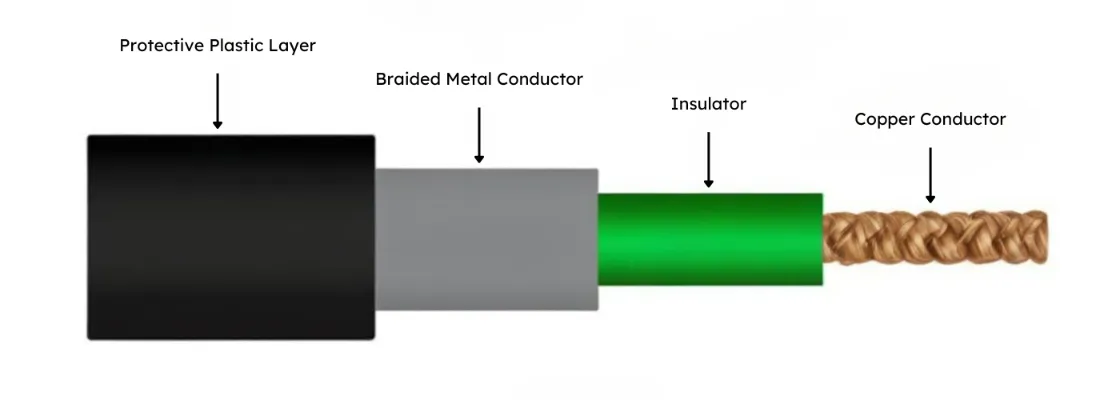

Copper Conductor: The central conductor is made of copper which transmits the data.

Insulator: Plastic insulation surrounds the copper conductor to preserve the spacing between the centre conductor and the shield.

Braided Mesh: A copper mesh protects against electromagnetic interference (EMI) by acting as a barrier, preventing EMI from entering or leaving the coaxial cable.

Protective Plastic Layer: An outer polymer layer with a plastic coating serves in safeguarding internal layers of the coaxial cable from potential harm.

Coaxial cable is widely used in networking, broadcasting, and telecommunications. It has several applications. Its ability to send high-speed communications across long distances with minimal interference makes it appealing to many applications. Some of the most common applications for coaxial cable are as follows:

Coaxial cable is widely used to send and receive television signals from antennas to homes and businesses. TV coaxial wires are perfect for high-definition television and usually come with F-type connectors, providing high-quality transmissions.

Coaxial cable is also utilized in networking applications to link modems and routers and provide high-speed internet access. Digital coaxial cables are widely used in these applications because of their high data transmission rate and low interference.

Coaxial cable is widely used in closed-circuit television (CCTV) and other security systems. The cable allows high-quality video feeds to be remotely monitored by connecting cameras to recorders.

Sensors and other equipment are often connected to control and monitor systems using coaxial cable in industrial settings. The cable is ideal for various applications because of its durability and ability to transmit signals over long distances with minimal interference.

Coaxial cable is also used in medicine, for example, to link monitors and other devices to imaging apparatus. The cable needs to provide clear, interference-free signals for various applications.

Ideally, you should consider a few things before purchasing a coaxial cable.

Frequency Range: A coaxial cable’s frequency range is one of the most important factors to consider when choosing a cable. It is to prevent distortion or loss of signal. The frequency ranges of various coaxial cables vary, so the cable’s frequency range needs to be appropriate for the intended use.

Impedance: Impedance gauges a cable’s resistance to the flow of an electrical current. Coaxial cables typically have an impedance of 50 or 75 ohms. The impedance of your cable needs to match the impedance of your systems and equipment to ensure proper signal transmission.

Length: You should also consider the length of your cable. Longer cables may experience significantly more signal loss and distortion than shorter ones. Therefore, you should select a cable that is the appropriate length for your requirements.

Shielding: Coaxial cables are shielded to stop transmission interference. The thickness of the shielding may vary among cables. Selecting a cable with adequate shielding will protect your signal from interference.

Connection Type: Considering the coaxial cable’s connection type is essential. Different systems and gadgets may require different kinds of connections. As a result, the cable connection type you choose needs to be appropriate for the intended use.

Considering these factors can help you select the best coaxial cable for your needs.

Various coaxial cable types are available, each with unique qualities and purposes. The most common type used in television and internet applications is RG-6; however, other types, such as RG-59, RG-11, and RG-213, may also be used depending on the system’s particular requirements.

Coaxial cables are a vital component of modern communication networks. Its unique architecture, which consists of concentrated copper conductors and a dielectric insulator, allows it to transmit high-frequency data over long distances without signal loss.
